LIVE ACIS DATA: MEAN VALUES, SIGMAS, AND STATUS

ACIS Live: Mean Engineering Data [colossus]

Web Page Last Updated: Thu Aug 21 00:30:02 GMT 2008

TIME OF LAST DATUM REC'D WAS Wed Aug 20 20:32:14 GMT 2008

DATA WAS IN FMT2 & OBSID 57643 WAS IN PROGRESS

WE ARE CURRENTLY LOS
I last saw data on Wed Aug 20 20:32:31 GMT 2008 (Day 233)

CURRENT RADIATION ENVIRONMENT AT CHANDRA

Start Time Wed Aug 20 20:27:22 GMT 2008
End Time Wed Aug 20 20:31:44 GMT 2008

RAD MON STATUS = DISA
EPHIN Geometry = SMALL

Number of Samples in Mean = 5

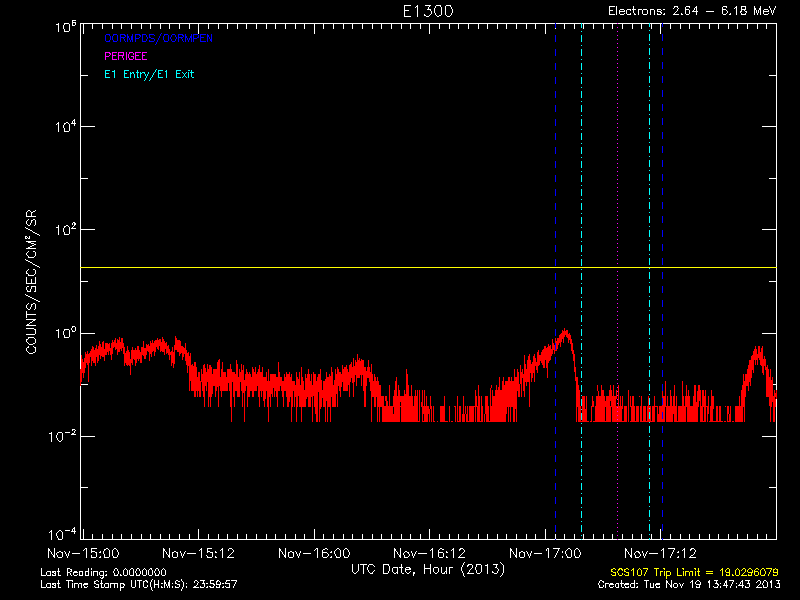

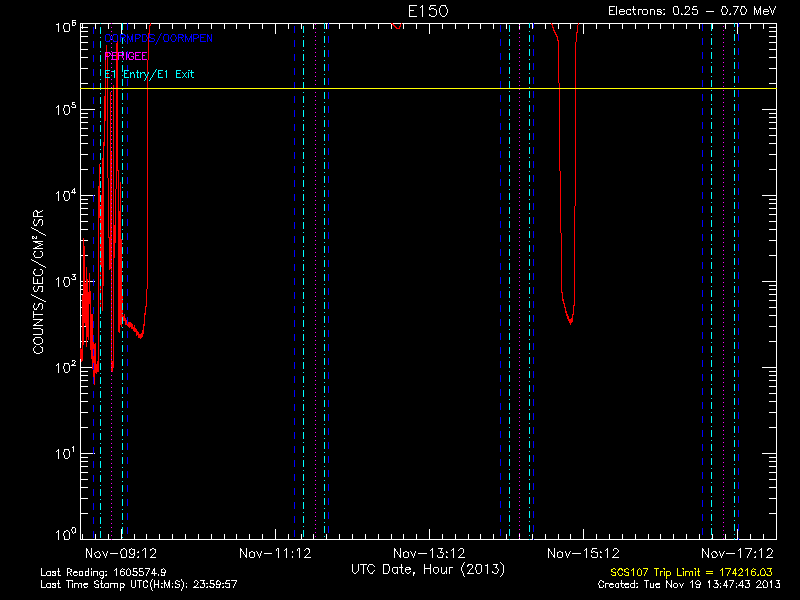

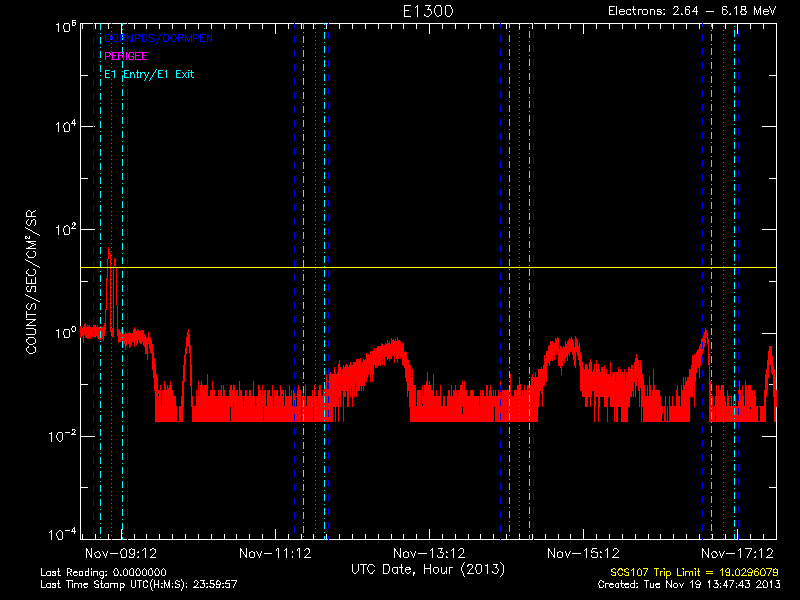

Click on EPHIN Channel Name for 3 day plot of data

EPHIN CHANNEL DESCRIPTION MEAN VALUE [cts/s/cm**2/sr] SCS107 LIMIT [cts/s/cm**2/sr]

E150 - 9 day Electrons: 0.25 - 0.70 MeV 2204097.56 N/A

E300 - 9 day Electrons: 0.67 - 3.00 MeV 109000.70 N/A

E1300 - 9 day Electrons: 2.64 - 6.18 MeV 338.01 20

E3000 - 9 day Electrons: 4.80 - 10.4 MeV 16.97 N/A

P4GM - 9 day Protons: 5.0 - 8.3 MeV 41175.07 300

P8GM - 9 day Protons: 8.3 - 25.0 MeV 26675.34 N/A

P25GM - 9 day Protons: 25.0 - 41.0 MeV 70.93 N/A

P41GM - 9 day Protons: 41 - 53 MeV 2.69 8.47

H4GM - 9 day Helium: 5.0 - 8.3 MeV 0.02 N/A

H8GM - 9 day Helium: 8.3 - 25.0 MeV 0.05 N/A

H25GM - 9 day Helium: 25.0 - 41.0 MeV 0.12 N/A

H41GM - 9 day Helium: 41 - 53 MeV 0.00 N/A

INT - 9 day Integrated - e>8.7 : p,h>53 10.11 N/A

LATEST ORBITAL FLUENCE DATA AT: Thu Aug 21 00:30:02 GMT 2008

ALTITUDE LATEST ACIS FLUX (ACE P3 CHANNEL) ACIS FLUENCE (ACE P3 CHANNEL)

74838 km A 0.00e+00 0.000e+00

CURRENT ORBITAL INFORMATION

EXPECTED SCHEDULED STATE AT: Thu Aug 21 00:30:02 GMT 2008 (Day 234)

FP INSTRUMENT GRATINGS STATUS OBSID TLM FORMAT DITHER STATUS

HRC-S ( -99616 ) HETG-OUT/LETG-OUT 57642 FMT2 ENAB

REAL-TIME STATE AT: Wed Aug 20 20:32:31 GMT 2008 (Day 233)

FP INSTRUMENT GRATINGS STATUS OBSID TLM FORMAT DITHER STATUS

HRC-S (-99616.00) HETG-OUT/LETG-OUT 57643 FMT2 ENAB

SIM AND FOCUS POSITIONS

End Time: Wed Aug 20 20:31:49 GMT 2008

MSID DESCRIPTION LAST VALUE

[37]TSCPOS SIM TT Position -99616.00 / -1.00

[37]FAPOS SIM FA Position -467.00 / -1.00

4HPOS[AB]RO HETG Angle 79.09 / 79.84

4LPOS[AB]RO LETG Angle 77.96 / 77.21

SIM Motor Overcurrent & Stall Cntrs
Start Time: Wed Aug 20 20:26:58 GMT 2008
End Time: Wed Aug 20 20:31:53 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

3SMOTOC SIM Motor Overcurrent Cntr 0.00 0.00 10

3SMOTSTL SIM Motor Stall Cntr 0.00 0.00 10

ELECTRICAL DATA

ACIS DPA
Start Time: Wed Aug 20 20:27:16 GMT 2008
End Time: Wed Aug 20 20:32:12 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1DP28AVO DPA +28V Input A 28.88 0.05 10

1DP28BVO DPA +28V Input B 29.08 0.05 10

1DPICACU DPA Input Current A 1.37 0.01 10

1DPICBCU DPA Input Current B 1.16 0.01 10

DPA A POWER 1DP28AVO*1DPICACU 39.57 0.30 NA

DPA B POWER 1DP28BVO*1DPICBCU 33.73 0.30 NA

1DPP0AVO DPA +5V Analog A 5.28 0.01 10

1DPP0BVO DPA +5V Analog B 5.27 0.00 10

ACIS DEA
Start Time: Wed Aug 20 20:29:31 GMT 2008
End Time: Wed Aug 20 20:31:58 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1DE28AVO DEA +28V Input A 28.90 0.04 10

1DEP3AVO DEA +28V Analog A 30.72 0.02 10

1DEP2AVO DEA +24V Analog A 24.91 0.02 10

1DEP1AVO DEA +15V Analog A 15.39 0.00 10

1DEP0AVO DEA +6V Voltage A 6.11 0.00 10

1DEN0AVO DEA -6V Voltage A -6.16 0.01 10

1DEN1AVO DEA -15V Voltage A -15.35 0.01 10

1DEICACU DEA Input Current A 0.83 0.14 10

DEA A POWER 1DE28AVO*1DEICACU 23.99 4.05 NA

1DE28BVO DEA +28V Input B 29.09 0.03 10

1DEP3BVO DEA +28V Analog B 0.36 0.02 10

1DEP2BVO DEA +24V Analog B 0.24 0.00 10

1DEP1BVO DEA +15V Analog B 0.20 0.01 10

1DEP0BVO DEA +6V Voltage B 0.07 0.00 10

1DEN0BVO DEA -6V Voltage B -0.18 0.01 10

1DEN1BVO DEA -15V Voltage B -0.38 0.02 10

1DEICBCU DEA Input Current B 16.41 0.02 10

DEA B POWER 1DE28BVO*1DEICBCU 477.37 0.76 NA

ACIS-AT-A-GLANCE STATUS LIGHTS

ACIS AT A GLANCE

End Time: Wed Aug 20 20:31:46 GMT 2008

ACIS AT A GLANCE

End Time: Wed Aug 20 20:31:47 GMT 2008

MSID DESCRIPTION STATUS

1DPPSAX DPA POWER SUPPLY EN/DIS A

1DPPSA DPA POWER SUPPLY ON/OFF A

1DPPSBX DPA POWER SUPPLY EN/DIS B

1DPPSB DPA POWER SUPPLY ON/OFF B

1DEPSAX DEA POWER SUPPLY EN/DIS A

1DEPSA DEA POWER SUPPLY ON/OFF A

MSID DESCRIPTION STATUS

1DAHTAEN DA HTR EN/DIS A

1DAHTAON DA HTR ON/OFF B

1DAHTBEN DA HTR EN/DIS B

1DAHTBON DA HTR ON/OFF B

1DABOAEN DA BAKE OUT EN/DIS A

1DABOAON DA BAKE OUT ON/OFF A

1DABOBEN DA BAKE OUT EN/DIS B

1DABOBON DA BAKE OUT ON/OFF B

1DE28AOC DEA POWER SUPPLY +28V Over-Current Protection

1DE28BOC DEA POWER SUPPLY +28V Over-Current Protection

1DEMVAOC DEA POWER SUPPLY Multi-V Over-Current Protection

1DEMVBOC DEA POWER SUPPLY Multi-V Over-Current Protection

1DPCPAOC DPA POWER SUPPLY Over-Current Protection

1DPCPBOC DPA POWER SUPPLY Over-Current Protection

1DEPSBX DEA POWER SUPPLY EN/DIS B

1DEPSB DEA POWER SUPPLY ON/OFF B

HW AND SW LEDS

HW End Time: Wed Aug 20 20:31:45 GMT 2008

SW End Time: Wed Aug 20 20:31:45 GMT 2008

ACIS MECH

End Time: Wed Aug 20 20:31:47 GMT 2008

MSID 1STAT[7654]ST STATUS -->

1STAT7ST RED (0) -> FIFO Empty GREEN (1) -> FIFO Not Empty

1STAT6ST RED (0) -> FIFO Full GREEN (1) -> FIFO Not Full

1STAT5ST RED (0) -> BEP Held In Reset GREEN (1) -> BEP Not In Reset

1STAT4ST RED (0) -> BEP A Selected GREEN (1) -> BEP B Selected

MSID 1STAT[3210]ST STATUS -->

1STAT3ST RED (0) -> BEP Code Initialized GREEN (1) -> BEP Code Initializing

1STAT2ST RED (0) -> Watchdog Boot GREEN (1) -> Normal Boot

1STAT1ST RED (0) -> Science Active GREEN (1) -> Science Idle

1STAT0ST 0 or 1: BEP SW Is Running Bit Toggles Every 64s

MSID DESCRIPTION STATUS

1MDBUAON Door Enable A

1MDBUBON Door Enable B

1MODRAOP Door Open Drive A

1MODRBOP Door Open Drive B

1MCDRACL Door Close Drive A

1MCDRBCL Door Close Drive B

1VVDBAON Vent Valve Enable A

1VVDBBON Vent Valve Enable B

1VVODAOP Vent Valve Open Drive A

1VVODBOP Vent Valve Open Drive B

1VVCDACL Vent Valve Close Drive A

1VVCDBCL Vent Valve Close Drive B

1LVDBAON L V Enabled A

1LVDBBON L V Enabled B

THERMAL DATA

ISIM TEMPERATURES
Start Time: Wed Aug 20 20:29:38 GMT 2008
End Time: Wed Aug 20 20:32:6 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

3TSMYDPT -Y Shell (facing DPA) -34.78 0.00 10

3TSPYFET +Y Shell (facing HRC) -29.79 0.00 10

3TSPZDET +Z Shell (facing DEA) -12.33 0.00 10

3TSPZSPT +Z Shell (facing SS) -9.84 0.00 10

3TSMXSPT -X Shell (facing SS) 5.13 0.00 10

3TSMXCET -X Shell (facing HRC) -29.79 0.00 10

3RCTUBPT +X SIM (RCTU base) 3.15 0.00 10

3TTACS1T TT at -Y foot -9.80 0.00 10

3TTACS2T TT at +Y foot -7.71 0.00 10

3TTACS3T TT at +Z foot -13.14 0.00 10

THERMAL CONTROL DATA: SIDE A and B
Start Time: Wed Aug 20 20:29:32 GMT 2008
End Time: Wed Aug 20 20:32:0 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1CRAT Cold Radiator Temp A -125.54 0.93 10

1CRBT Cold Radiator Temp B -125.54 0.00 10

1WRAT Warm Radiator Temp A -86.64 0.93 10

1WRBT Warm Radiator Temp B -86.89 0.00 10

1DPAMYT DPA -Y Panel Temp (RT810) 14.53 0.00 10

1DPAMZT DPA -Z Panel Temp (RT830) 17.33 0.00 10

1DEAMZT DEA -Z Panel Temp (RT830) 9.61 0.00 10

1SSPYT Suppt Structure +Y Panel Temp (RT810) 12.45 0.15 10

1SSMYT Suppt Structure -Y Panel Temp (RT811) 15.55 0.00 10

1PDEAAT PSMC DEA Power Supply Temp A 29.97 0.34 10

1PDEABT PSMC DEA Power Supply Temp B 23.86 1.02 10

1PIN1AT PSMC Temp 1A 20.40 0.00 10

1CBAT - 9 day Camera Body Temp A -69.75 0.00 10

1CBBT - 9 day Camera Body Temp B -69.75 0.00 10

1DACTBT - 9 day DA Collimator-Top Temp B -16.32 0.42 10

HEATER DATA

ACIS DA
Start Time: Wed Aug 20 20:27:13 GMT 2008
End Time: Wed Aug 20 20:32:8 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1DAHHAVO DA Housing Htr +28V Input A 0.00 0.00 10

1DAHHBVO DA Housing Htr +28V Input B 0.00 0.00 10

1DAHAVO Detector Assy. Htr Voltage A 0.00 0.00 10

1DAHBVO Detector Assy. Htr Voltage B 0.00 0.00 10

1DAHACU Detector Assy. Htr Current A 0.00 0.00 10

1DAHBCU Detector Assy. Htr Current B 0.00 0.00 10

HTR A POWER 1DAHAVO*1DAHACU 0.00 NA NA

HTR B POWER 1DAHBVO*1DAHBCU 0.00 NA NA

1DAHAT Detector Assy. Housing Temp Offset A 21.10 0.46 10

1DAHBT Detector Assy. Housing Temp Offset B 7.20 0.59 10

MECHANISMS' DATA

ACIS HOUSING PRESSURE
Start Time: Wed Aug 20 20:29:32 GMT 2008
End Time: Wed Aug 20 20:31:59 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1HOPR[AB]PR Differential Housing Pressure -21.07 / -19.10 0.04 / 0.00 10 / 10

ACIS DOOR
Start Time: Wed Aug 20 20:29:33 GMT 2008
End Time: Wed Aug 20 20:32:0 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1DACTAT Door Angle Potentiometer 70.20 0.00 10

1OAHAT Open Actuator Temp Cold, Side B -32.59 0.93 10

1OAHBT Open Actuator Housing Temp, Side B -35.09 0.00 10

1MAHOAT Door Open Actuator Temp A 439.27 0.93 10

1MAHOBT Door Open Actuator Temp B 440.41 0.93 10

1MAHCAT Door Close Actuator Temp A 439.27 0.93 10

1MAHCBT Door Close Actuator Temp B 440.41 0.93 10

ACIS BIG VALVE
Start Time: Wed Aug 20 20:29:32 GMT 2008
End Time: Wed Aug 20 20:31:59 GMT 2008

MSID DESCRIPTION MEAN VALUE SIGMA OF THE MEAN # OF FRAMES

1VAHOAT Vent Valve Open Actuator Temp A 440.41 0.93 10

1VAHOBT Vent Valve Open Actuator Temp B 438.12 0.76 10

1VAHCAT Vent Valve Close Actuator Temp A 440.41 1.26 10

1VAHCBT Vent Valve Close Actuator Temp B 439.27 0.93 10

Web Page Designed and Maintained by:
Shanil Virani - svirani@head-cfa.harvard.edu &
Joe DePasquale - jdepasquale@head-cfa.harvard.edu

Return to ACIS Operations Team Web Site

EPHIN CHANNEL	DESCRIPTION	MEAN VALUE [cts/s/cm2/sr]**	SCS107 LIMIT [cts/s/cm2/sr]**
E150 - 9 day	Electrons: 0.25 - 0.70 MeV	2204097.56	N/A
E300 - 9 day	Electrons: 0.67 - 3.00 MeV	109000.70	N/A
E1300 - 9 day	Electrons: 2.64 - 6.18 MeV	338.01	20
E3000 - 9 day	Electrons: 4.80 - 10.4 MeV	16.97	N/A
P4GM - 9 day	Protons: 5.0 - 8.3 MeV	41175.07	300
P8GM - 9 day	Protons: 8.3 - 25.0 MeV	26675.34	N/A
P25GM - 9 day	Protons: 25.0 - 41.0 MeV	70.93	N/A
P41GM - 9 day	Protons: 41 - 53 MeV	2.69	8.47
H4GM - 9 day	Helium: 5.0 - 8.3 MeV	0.02	N/A
H8GM - 9 day	Helium: 8.3 - 25.0 MeV	0.05	N/A
H25GM - 9 day	Helium: 25.0 - 41.0 MeV	0.12	N/A
H41GM - 9 day	Helium: 41 - 53 MeV	0.00	N/A
INT - 9 day	Integrated - e>8.7 : p,h>53	10.11	N/A

ALTITUDE	LATEST ACIS FLUX (ACE P3 CHANNEL)	ACIS FLUENCE (ACE P3 CHANNEL)
74838 km A	0.00e+00	0.000e+00

FP INSTRUMENT	GRATINGS STATUS	OBSID	TLM FORMAT	DITHER STATUS
HRC-S ( -99616 )	HETG-OUT/LETG-OUT	57642	FMT2	ENAB

MSID	DESCRIPTION	LAST VALUE
[37]TSCPOS	SIM TT Position	-99616.00 / -1.00
[37]FAPOS	SIM FA Position	-467.00 / -1.00
4HPOS[AB]RO	HETG Angle	79.09 / 79.84
4LPOS[AB]RO	LETG Angle	77.96 / 77.21

MSID	DESCRIPTION	MEAN VALUE	SIGMA OF THE MEAN	# OF FRAMES
3SMOTOC	SIM Motor Overcurrent Cntr	0.00	0.00	10
3SMOTSTL	SIM Motor Stall Cntr	0.00	0.00	10

MSID	DESCRIPTION	STATUS
1DPPSAX	DPA POWER SUPPLY EN/DIS A
1DPPSA	DPA POWER SUPPLY ON/OFF A
1DPPSBX	DPA POWER SUPPLY EN/DIS B
1DPPSB	DPA POWER SUPPLY ON/OFF B
1DEPSAX	DEA POWER SUPPLY EN/DIS A
1DEPSA	DEA POWER SUPPLY ON/OFF A

MSID	1STAT[7654]ST STATUS -->
1STAT7ST	RED (0) -> FIFO Empty	GREEN (1) -> FIFO Not Empty
1STAT6ST	RED (0) -> FIFO Full	GREEN (1) -> FIFO Not Full
1STAT5ST	RED (0) -> BEP Held In Reset	GREEN (1) -> BEP Not In Reset
1STAT4ST	RED (0) -> BEP A Selected	GREEN (1) -> BEP B Selected
MSID	1STAT[3210]ST STATUS -->
1STAT3ST	RED (0) -> BEP Code Initialized	GREEN (1) -> BEP Code Initializing
1STAT2ST	RED (0) -> Watchdog Boot	GREEN (1) -> Normal Boot
1STAT1ST	RED (0) -> Science Active	GREEN (1) -> Science Idle
1STAT0ST	0 or 1: BEP SW Is Running	Bit Toggles Every 64s
